Fibre cement eave sheet in standard eaves sizes
Cemintel Eaves Lining Sheet
Key Features
4.5mm thick square-edged fibre cement panels, available in a range of widths and lengths to suit various eave and soffit designs. With a smooth, flat surface, they can be installed using butt joints or PVC jointing strips.
Designed for residential and medium-density buildings with overhanging pitched roofs, these sheets are site-painted and require a primer and exterior top-coats, or a self-priming exterior paint.
Explore Eaves Lining Sheet
Eaves Lining Sheet
Eaves Lining Sheet

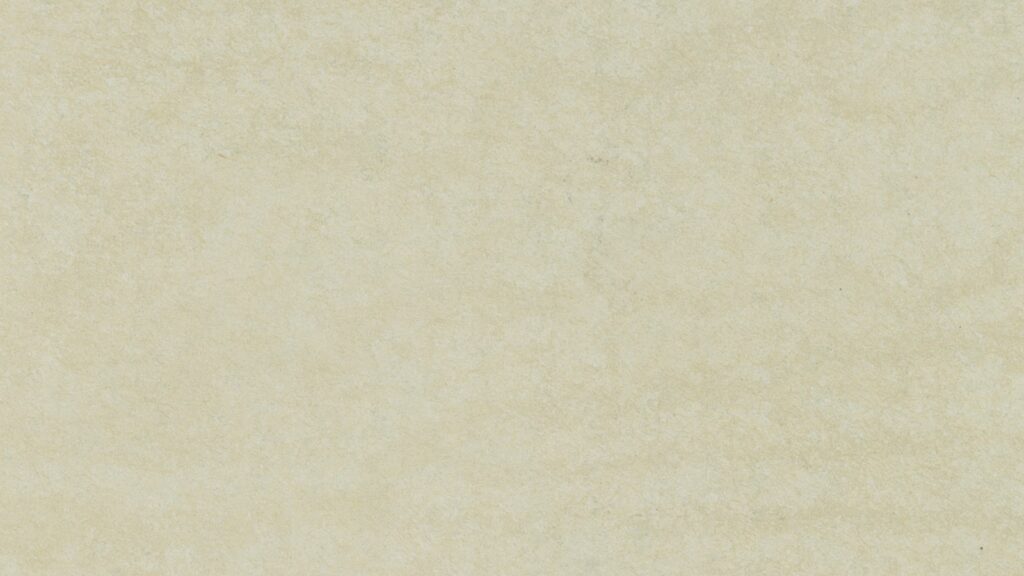

Disclaimer: Product images and samples may vary from actual product regarding colour and surface finish due to the manufacturing process and raw materials used.
Technical Information
Eaves Lining Sheet Information
Eave Lining Sheets are installed facing downwards where roofs overhang walls. Fibre cements sheets are ideal eaves linings. Being just 4.5mm thick, they’re light in weight, and since they’re made with cement, they won’t sag, swell or warp easily when exposed to moisture.
They can be screwed or nailed to timber frames. However, the sheets need to be supported by trimmers on the long edges and across the sheets at specified centres.
Eaves Lining Sheets conform to the requirements of AS/NZ2908.2 – Cellulose-cement products Part 2: Flat sheets.
Looking for a pre-finished eaves solution? Cemintel® Barestone™ External is an alternative eaves solution. It is a pre-finished product that doesn’t require site painting and can be used for a raw contemporary look with expressed joints. It also features Ceminseal® water-block technology providing greater water repelling performance.
Eave PVC Jointing Strips
- PVC H Mould: joins square edged sheets. Supporting joins with a timber trimmer is unnecessary.
- PVC Cap Mould: installed over joints that are supported by trimmers. They give a board and batten look.
- PVC Cover Strip: Neatly covers exposed sheet edges.
Eaves Lining Sheet Specifications
| Product Code | Web Description | Width (mm) | Length (mm) | Thickness (mm) | Surface Texture | Finish | Groove Spacing (mm) | Effective Cover Per Unit (m2) | Effective Width (mm) | Mass (kg/m2) | Weight Per Unit | Product Warranty (Years) | BAL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10217 | Eaves Lining Sheet | 450 | 2400 | 4.5 | Smooth | Unprimed | n/a | 1.08 | 450 | 7.3 | 7.88 | 25 | BAL-29 |
| 10218 | Eaves Lining Sheet | 600 | 2400 | 4.5 | Smooth | Unprimed | n/a | 1.44 | 600 | 7.3 | 10.51 | 25 | BAL-29 |
| 10219 | Eaves Lining Sheet | 750 | 2400 | 4.5 | Smooth | Unprimed | n/a | 1.8 | 750 | 7.3 | 13.14 | 25 | BAL-29 |
| 10208 | Eaves Lining Sheet | 900 | 2400 | 4.5 | Smooth | Unprimed | n/a | 900 | 7.3 | 25 | BAL-29 | ||
| 10211 | Eaves Lining Sheet | 1200 | 1800 | 4.5 | Smooth | Unprimed | n/a | 1200 | 7.3 | 25 | BAL-29 | ||
| 10213 | Eaves Lining Sheet | 1200 | 2400 | 4.5 | Smooth | Unprimed | n/a | 1200 | 7.3 | 25 | BAL-29 | ||
| 10214 | Eaves Lining Sheet | 1200 | 2700 | 4.5 | Smooth | Unprimed | n/a | 1200 | 7.3 | 25 | BAL-29 | ||
| 10215 | Eaves Lining Sheet | 1200 | 3000 | 4.5 | Smooth | Unprimed | n/a | 1200 | 7.3 | 25 | BAL-29 |
