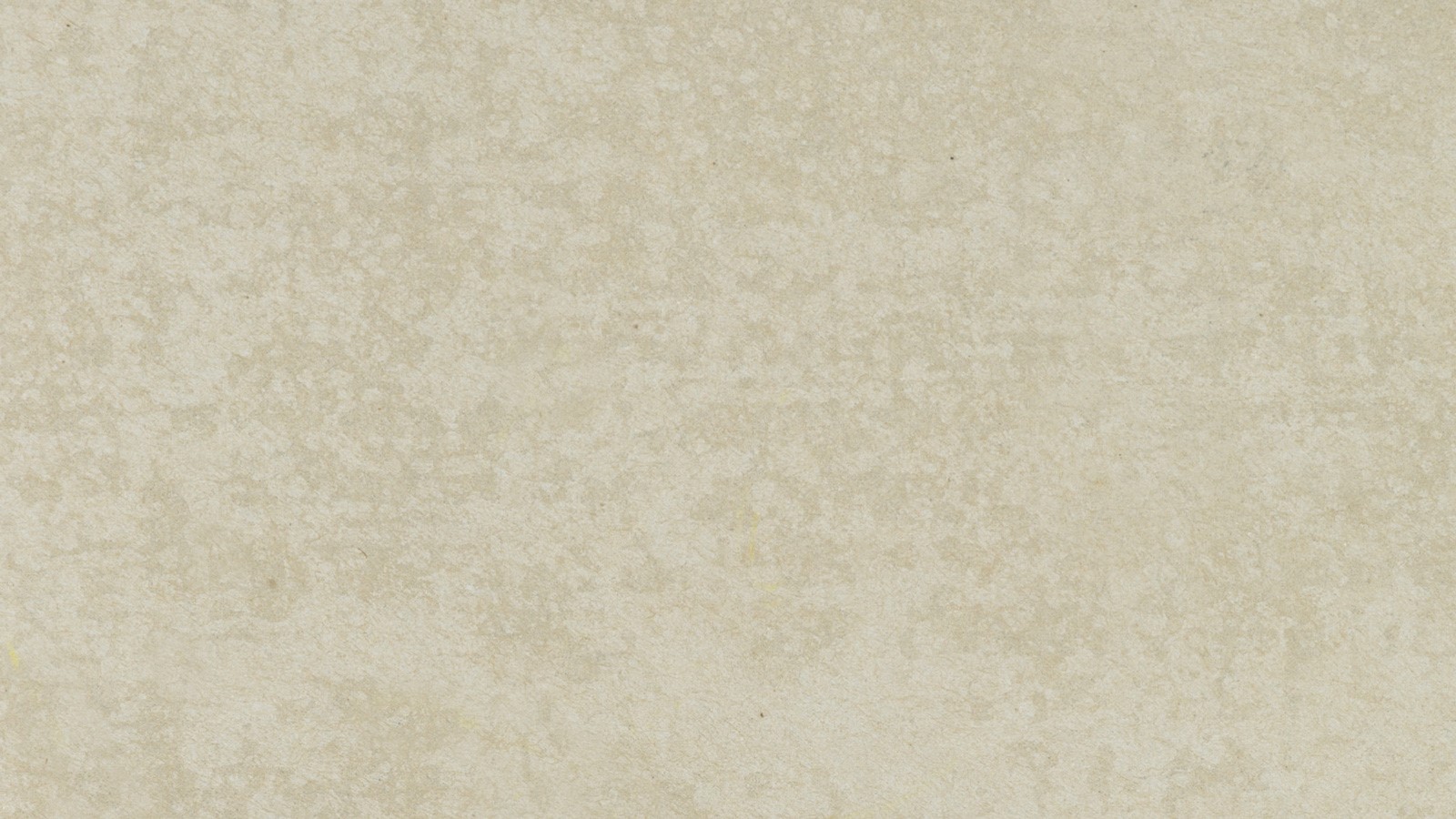

CeminSeal® Wallboard Square Edge is a superior wet area internal lining and tile substrate product designed and tested for compliance and peace of mind.
Do it once... do it properly.

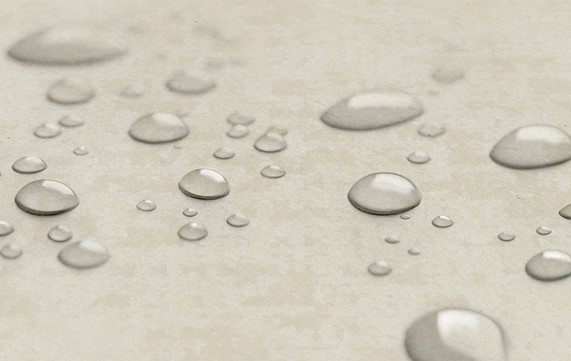

CeminSeal® Wallboard is manufactured in Australia and uses Cemintel’s unique CeminSeal® water block technology, repelling water, increasing paint adhesion and aiding moisture management in the places that can’t be seen. It is applied to the face of the panel and has been tested to show higher water resistance when compared to wet area plasterboard and other products on the market. The smooth finish of CeminSeal Wallboard means less work for fixing and setting and provides an extremely smooth paint surface when not tiled over.
Why would you use anything else?
As seen on THE BLOCK - Season 13 ... click the image to play
Features
- Superior wet area internal lining and tile substrate product
- CeminSeal® water block technology repels water and increases paint adhesion
- Shows higher water resistance when compared to wet area plasterboard and other products
- Smooth finish means less work for fixing and setting
- Extremely smooth paint surface when not tiled over
-
Internal Linings
-
Eaves & Soffits
Downloads
Associated files for this Cemintel product are available for download.
CeminSeal Wallboard NZ Flyer
Ceminseal Wallboard Product Technical Statement
PDF | 169.6KB
Wallboard Square Edge BIM files
ZIP | 908.6KB
Eaves and Soffits Product Flyer
PDF | 724.3KB
Ceiling Systems Design & Installation Guide
PDF | 13.1MB
Wallboard Product Technical Statement
PDF | 169.6KB
Ceminseal Wallboard Product Warranty NZ
PDF | 105.5KB
Wet Area Systems Design & Installation Guide
PDF | 4.3MB
Fire Performance Guide - Fibre Cement Cladding
PDF | 3.3MB
Cemintel Product Portfolio
PDF | 16.0MB
Fibre Cement Safety Data Sheet
PDF | 715.8KB
Technical Data
APPLICATIONS
| Result | |
|---|---|
| Applications | Internal Linings, Eaves & Soffits (Express jointed only) |
| Type of Building Structure | Residential Housing Buildings within the scope of AS4055, Commercial & Other |
| Wet Areas | Yes |
PANEL - DIMENSIONAL & GEOMETRICAL CHARACTERISTICS
| Dimensional/Geometrical Characteristic | Specification | Manufacturing Tolerance | Relevant Standard |
|---|---|---|---|
| Panel Dimensions | 1200mmW x 2400mmL x 6mmD 1200mmW x 2400mmL x 9mmD |
Width +0 -3 mm Length +0 - 4 mm Thickness +0.5 -0 mm |
|
| Profile | Square Edge | ||
| Perpendicularity/squareness of edges | 2mm/linear meter | ||
| Weight (typical) | 6mm = 9.4kg/m2, 9mm = 14kg/m2 | ||
| Layout Options | Horizontal | ||
| Jointing | Butt Jointed, Concealed, Expressed (ceilings only) |
PANEL - STRENGTH & MOISTURE RELATED PROPERTIES
| Physical Property | Result | Relevant Standard |
|---|---|---|
| Modulus of Rupture (Wet) | > 8 MPa | AS2908.2 |
| Modulus of Elasticity (Wet) | 3-5 GPa | AS2908.2 |
| Density (Oven Dry) | 1350 kg/m3 | AS2908.2 |
| Water Vapor Diffusion | Not Required | Not Required |
| Water Tightness (24hrs) | No water droplet | AS2908.2 |
| Water Absorption (Saturated – 48hrs) | 30 wt% | ASTM C 1186 |
| Moisture Content (EMC) | 7 Wt % | ASTM C 1186 |
| Moisture Movement | 0.0006 | ASTM C 1186 |
PANEL - OTHER DURABILITY/WEATHER RESISTANCE INDICATORS
| Test | Result | Relevant Standard |
|---|---|---|
| Heat Rain | PASSED (25 Cycles) | AS2908.2 |
| Freeze Thaw | PASSED (50 Cycles) | AS2908.2 |
| Warm Water Resistance | PASSED (56 days) | AS2908.2 |
| Soak Dry | PASSED (25 Cycles) | AS2908.2 |
PANEL - FINISH CHARACTERISTICS
| Characteristic | Result | Relevant Standard |
|---|---|---|
| Finish | Preprimed | |
| Coating Type | CeminSeal® | |
| Colour Bodied | No | |
| Paint Type | ||
| UV Resistance | N/A | N/A |
| Formaldehyde Emission Rate | Meets Green Building Council Office Design IEQ-14 Requirements for <0.1mg/m2/hr* *Refers to results obtained for Woodlands Teak |
ASTM D5116 |
| VOC Emission Rate | Meets Green Building Council Office Design IEQ-14 Requirements for <0.5mg/m2/hr* *Refers to results obtained for Woodlands Teak |
ASTM D5116 |
| Spectral Reflectivity Values | Solar Reflectance % | Solar Absorption % | Basix Colour | Relevant Standard |
|---|---|---|---|---|
| CeminSeal® Wallboard - Square Edge | N/A |
PANEL - FIRE RESISTANCE, THERMAL & ACCOUSTIC PROPERTIES
| Characteristic | Result | Relevant Standard |
|---|---|---|
| FIRE RESISTANCE | ||
| Combustibility | Suitable for use in applications where non-combustible materials are specified by the Deemed to Satisfy Provisions of the 2016 BCA Vol 1 Amendment 1 Clause C1.9 (2015 BCA Vol Clause C1.12) | |
| Fire Hazard Properties | Group 1 Av Specific Extinction Area <250 | AS 5637.1 |
| Classification | 1 | AS/NZ 3837 |
| THERMAL CONDUCTIVITY | ||
| Thermal Conductivity (λ -Factor) | ≈ 0.2776 W/m.K. | |
| Thermal Expansion Co-efficient | 0.005-0.01mm/mK | N/A |
| ACOUSTIC VALUE | ||
| Sound reduction (depends on construction) | N/A | N/A |
SYSTEM SOLUTIONS
| Characteristic | Result | Relevant Standard |
|---|---|---|
| Within Scope of AS4055? | Yes | |
| Wind Loading - Residential housing buildings within the scope of AS4055 | N1, N2, N3, N4, N5, C1, C2, C3 | |
| Weatherproofing | N/A | N/A |
| Cyclonic Conditions | N/A | N/A |
| Fire Resistance Limits (FRLs) | N/A | N/A |
| Bushfire Construction | BAL 40 (Construction for Bushfire Attack Level 40 for an external wall) | AS 3959-8 |
| Acoustic | N/A | N/A |
| Thermal | N/A | N/A |
FIXING
| Characteristic | |
|---|---|
| Maximum Span (Stud Spacing) | Up to 1200mm (internal); Up to 1610mm (external) |
| DIRECT FIX | |
| Nail to Timber Frame | Yes (walls) |
| Screw to Timber Frame | No |
| Screw to Steel Frame | Yes (walls) |
| INDIRECT FIX | |
| Timber Frame | Yes (ceilings) |
| Steel Frame | Yes (ceilings) |
| Masonry Frame | No |
| EXPOSED FASTENERS | |
| Screw | No |
| Rivet | No |
| Nail | No |
| CONCEALED FASTENERS | |
| Clip | No |
| Countersunk Screw/Nail | Yes |
| Adhesive, Split Batten, etc. | Yes |
| Hidden by Overlapping Panel | No |
| Flush Jointed (Taped) | Yes |
WARRANTY 25 Years
